Selecting the right fastening approach can completely change the structural safety of a commercial project. Engineers face a major choice when securing heavy steel frames to concrete foundations. They must decide between two primary methods. These are chemical anchoring setups and mechanical fastening options. Each solution relies on a completely different physical action to hold structural loads. Mechanical systems grip the concrete using tight friction and physical pressure. Chemical setups use a liquid adhesive resin to create a permanent structural bond along the entire hole. Choosing the wrong fastener can lead to costly foundation cracks or project delays. This guide provides an authoritative look at the technical performance of both systems. It examines real-world strength limits, field handling needs, and local climate factors across the busy industrial landscape of the UAE. Read on to discover how matching the right anchor to your specific base material ensures a safe, durable build that satisfies strict engineering codes.
To correctly choose a securing approach, one needs to examine the way force is transmitted into the foundation’s sheer body. The physical configuration of the holdfast dictates how strain is distributed via the adjacent substrate.

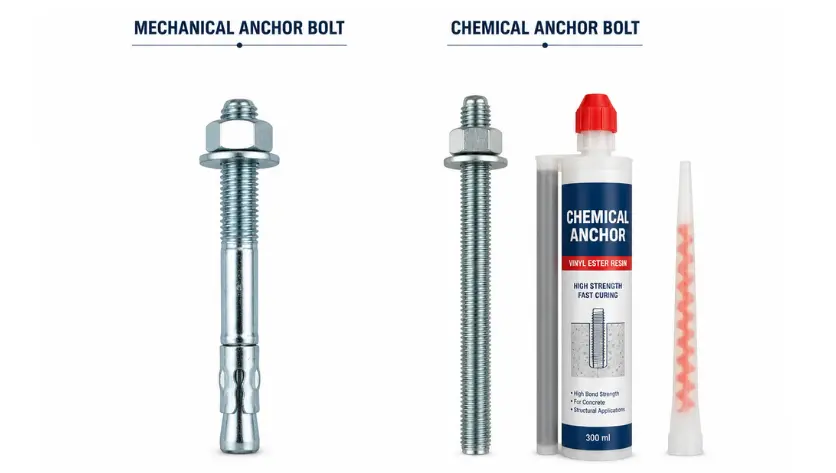

Mechanical anchor bolts depend wholly on physical grip and interlocking forces within a bored channel. As a tradesperson tightens a mechanical fastener, its collar or expanding part pushes outward against the concrete aperture’s internal surfaces. This tangible expansion generates intense, concentrated stress. This stress keeps the structural element firmly fixed.
In stark opposition, chemical anchor bolts rely on a chemical process to form a long-lasting structural connection. This technique employs a fluid adhesive compound that is applied straight into the bored hole prior to placing a threaded bar. The compound hardens quickly, effectively melding the metal rod right to the concrete substrate. This chemical structure spreads the load uniformly across the full embedment depth of the rod. Consequently, it entirely prevents the development of localized areas of intense pressure.
Assessing these anchoring techniques necessitates examining several functional aspects. These encompass the structural strength, the setting durations, and the total load imposed upon the substrate. The table below offers a comprehensive contrast of these performance indicators:
|
Engineering Performance Metric
|
Chemical Anchoring Systems (Bonded Anchors)
|
Mechanical Anchoring Systems (Expansion Anchors)
|
|---|---|---|
|
Primary Holding Mechanism
|
Full-surface chemical adhesion and chemical cross-linking matrix
|
Concentrated friction expander sleeve expansion and mechanical point interlock
|
|
Curing Time Requirements
|
Requires temperature-dependent curing time from minutes to several hours
|
Instantaneous load-bearing capacity immediately after torque application
|
|
Edge Distance Constraints
|
Minimal spacing needed due to zero expansion radial stress forces
|
Significant spacing required to avoid cracking the outer concrete edges
|
|
Dynamic Vibration Resistance
|
Excellent vibration-damping properties due to the solid resin fill
|
Can loosen over time under severe cyclic loading or heavy dynamic vibration
|
|
Hole Diameter Sensitivity
|
A flexible system that allows small variations in the drilled hole size
|
Highly sensitive system requiring exact drill bits for proper mechanical friction
|
The radial push from expansion fasteners forms a lasting stress zone within the concrete. When numerous mechanical fasteners are situated too near one another, their stress zones intersect. This merging heightens the chance of abrupt concrete failure due to breakout. Adhered fasteners completely remove this radial tension, permitting greater weight capacity in more compact spaces.
Mechanical fixings provide a huge benefit when speed is key, as they bear full structural stresses right away. Chemical anchors necessitate careful waiting on the building site. The person installing must check the surrounding warmth to establish the precise setting duration required before any nut is fastened.
Choosing the right concrete anchor bolts significantly depends on your project’s site specifics and the concrete foundation type. The decision between mechanical and chemical anchors frequently hinges on required spacing and the substrate’s state.
Wedge anchor bolts represent one of the most common types of mechanical fasteners used today. They work best in thick, solid concrete structures where you can safely space the bolts far apart. However, mechanical options can cause problems if you use them close to edges. The outward pressure can crack or break weak concrete.
For projects with narrow edges or close spacing, engineers prefer bonded anchors. These chemical systems work exceptionally well in modified structures or lightweight concrete foundations. Since they do not exert outward expansion forces, they allow you to place multiple fasteners close together. This makes them ideal for securing heavy machinery bases or complex structural frame additions.
|
Technical Material Specification
|
Chemical Adhesive Stud Assemblies
|
Mechanical Heavy Expansion Fasteners
|
|---|---|---|
|
Available Steel Grades
|
ASTM A193 Grade B7, B8, B8M, and ASTM A320 Low Temperature Services
|
Carbon Steel Class 4.6, 8.8, 10.9, 12.9
|
|
Corrosion Protective Coatings
|
PTFE Coatings, Hot Dip Galvanized, and Zinc-Nickel
|
Electro-Zinc Plating and Yellow Passivation
|
|
Standard Size Range
|
M8 to M180 and Custom Fabricated Structural Anchor bolt
|
M6 to M36 and custom expansion fasteners
|
|
Base Material Suitability
|
High-strength fastening in concrete and solid structures using specialized Mild Steel or Stainless Steel (304/316) elements
|
Joining hollow-section steelwork with limited one-sided access (square, round, or rectangular sections)
|
The mechanical capacity of heavy fastening networks depends directly on the metallurgy of the raw steel bars. High industrial projects require strict tracing of materials to confirm they match global design metrics. Testing standard components ensures the safety of structures under sudden high stress and long operational lifespans.
|
Steel Grade Specification
|
Fastener Diameter Size Range
|
Minimum Tensile Strength
|
Minimum Yield Strength
|
Minimum Elongation Rate
|
|---|---|---|---|---|
|
ASTM A193 Grade B7
|
Over 2 1/2" (M64) to 4" (M100)
|
115 Ksi (795 Mpa)
|
95 Ksi (655 Mpa)
|
16%
|
|
ASTM A320 Grade L7
|
Low Temp Steel (2 1/2" (M64) and under)
|
125 Ksi (860 Mpa)
|
105 Ksi (725 Mpa)
|
16%
|
|
Carbon Steel Class 4.6
|
Standard Commercial Fasteners
|
400 Mpa
|
240 Mpa
|
22%
|
|
Carbon Steel Class 8.8
|
Standard Structural Grade Bars (d < 16mm)
|
800 Mpa
|
640 Mpa
|
12%
|
|
Carbon Steel Class 10.9
|
High Strength Alloy Assemblies
|
1040 Mpa
|
940 Mpa
|
9%
|
|
Carbon Steel Class 12.9
|
Ultra-High Strength Precision Fasteners
|
1220 Mpa
|
1100 Mpa
|
8%
|
Every structural component must go through strict checks to verify its chemical breakdown, sizing accuracy, and metal hardness. These items are verified using special tools like hardness testers and large universal testing machines. Hardness testing confirms that the heat-treatment process reached the exact depth required to prevent head stripping under load.
Advanced testing options like positive material identification help tracking for high-performance alloys. This gives industrial builders full tracking documents for every piece of hardware they place on site. This paperwork trace protects engineering firms from liability if a failure occurs elsewhere on the project.
The climate within the United Arab Emirates poses distinct hurdles for structural building. Intense summer heat, saline air near the coast, and abrasive windblown sand can hasten the deterioration of structures. Such elements necessitate thoughtful selection processes for commercial fasteners.
Significant construction works in Dubai employ heavy duty anchor bolts for securing towering structures, expansive retail centers, and transit networks. Regional building codes require exceptional exactitude and rigorous adherence to global benchmarks. Commercial anchor bolts need to resist sustained wind forces and variations in temperature. For these major infrastructural undertakings, designers mandate construction anchor bolts bearing distinct global certification marks. This guarantees enduring security for elevated construction.
Local energy industries, encompassing petroleum, natural gas, and electricity generation, necessitate particular types of fasteners. Remote drilling platforms and shoreline processing plants call for high-performance structural anchor bolts. These ventures frequently utilize stainless steel anchor bolts crafted from alloys suitable for maritime settings, such as 316 stainless or duplex compositions. This offers excellent defense against deterioration from seawater. For pipelines operating under significant pressure or substantial refining apparatus, personnel employ anchor bolts with high tensile strength. These purpose-built fasteners can manage extreme mechanical stresses. Furthermore, they retain their soundness within challenging, corrosive shoreline settings.
Elevated warmth in the UAE impacts the setting of chemical bonding agents. Regular chemical fixatives might become pliable or degrade if the temperature surpasses their intended thresholds. To address this, providers supply distinct chemical anchor bolts UAE blends. These sophisticated compounds are adapted to harden correctly in warm conditions. They keep their complete load-bearing capability even as concrete warmth increases over the summer months. For undertakings where the heat of the season is a worry, mechanical anchor bolts UAE present a dependable substitute. These mechanical setups are immune to temperature variations. This renders them a solid selection for exterior metal frameworks and arid industrial complexes.
Analyzing real-world applications highlights how field conditions dictate the best anchoring choice. These case studies show how engineers select fasteners based on specific project needs.
A large manufacturing plant in Abu Dhabi needed to secure heavy, vibrating machinery to a concrete floor. The close spacing of the anchor points ruled out mechanical expansion bolts, as the radial forces could crack the floor. Instead, the engineering team used industrial anchor bolts Dubai chemical systems. They injected premium epoxy resin to secure high-tensile threaded rods deep into the concrete floor. The cured epoxy filled the entire hole, creating a solid bond. This chemical bond distributed the heavy operational vibrations evenly, preventing the anchors from loosening over time.
A logistics firm in Sharjah needed to build a steel-frame warehouse on a tight schedule. The project required installing hundreds of foundation anchor bolts UAE to secure the vertical steel columns to the concrete footings.
To save time, the contractor chose mechanical wedge anchors. Using these construction anchor bolts UAE allowed the crew to drill holes, drive the anchors in, and torque them down immediately. The steel columns were bolted in place without waiting for chemical resins to cure. This mechanical approach kept the project moving forward swiftly.
An energy company operating in the Arabian Gulf needed to upgrade the safety handrails and equipment skids on an offshore platform. This marine environment required top-tier anchor bolts for oil and gas systems. The engineers chose chemical anchoring systems paired with super duplex stainless steel rods. This combination provided two major advantages. The chemical resin sealed the drilled holes completely, preventing saltwater from seeping in and rusting the internal concrete steel reinforcement. At the same time, the super duplex rods provided exceptional resistance to marine corrosion. This ensured a long, maintenance-free service life on the offshore platform.
The raw steel alloys used in anchor manufacturing must have external barrier coatings to stop rust over time. Fastener components can be finished with many different commercial coatings depending on where they will be used. Choosing the right protective surface can make the assembly last much longer in tough industrial settings.
Hot-dip galvanizing is a highly popular option for standard outdoor environments. This coating process puts a thick zinc layer over the steel components. The zinc layer serves as a sacrificial shield that takes the brunt of regional moisture and rust. For lighter workloads or indoor assemblies, electro-zinc plating provides a clean, precise finish that keeps the thread size exact.
For the most intense industrial setups, advanced treatments like polytetrafluoroethylene (PTFE) coatings provide superior protection. This chemical layer protects against strong industrial chemicals and reduces friction during tightening. Specialty plants use custom baking ovens to fuse this low-friction polymer layer directly to the threaded metal surfaces. This advanced layer gives great protection for heavy systems used in chemical plants and regional oil networks.
Obtaining fasteners with proper certification is crucial for your endeavor to meet regional building standards and safety guidelines. Partnering with a knowledgeable, accredited anchor bolt supplier UAE assures that each item provides its stated strength in the field.
To get expert engineering guidance on choosing top-tier connecting hardware, feel free to contact our technical assistance staff. They can fully inform you about our offerings and how we contribute to significant area undertakings. Our local structural experts will assess your structural weight requirements, the chemical makeup of the local ground, and the level of environmental contact to assist you in pinpointing the perfect material selections and surface protection treatments uniquely suited to your job’s needs.
Mechanical anchors gain their grip through physical expansion against the inner surface of a drilled opening, generating holding friction. Chemical anchors employ a fluid adhesive polymer that binds the metal rod directly to the concrete structure.
Affirmative, however, you must utilize resin products specifically formulated for hot conditions. Elevated air temperatures speed up the hardening process, meaning installation teams need to proceed rapidly before the chemical bonding agent starts to solidify.
Chemical fixings generally exhibit superior performance when subjected to intense, fluctuating vibrations. The hardened adhesive fills the entire void, dampening oscillations and stopping the anchor rod from becoming loose eventually.
Negative, mechanical expansion fixings impose considerable outward stress on the surrounding concrete. Setting them too near an edge risks fracturing or damaging the concrete structure.
For projects situated near the coast or offshore, marine-grade stainless steel or specific PTFE finishes are necessary. Areas subject to dry desert conditions indoors can safely employ common zinc-plated steel fasteners.
